Plain End TP317 / 347H Stainless Steel Pipe 300 Series 14BWG , 18BWG , 20BWG

Jiaxing MT stainless steel co.,ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Plain End TP317 / 347H Stainless Steel Pipe 300 Series 14BWG , 18BWG , 20BWG

  • 1
  • 2

Brand Name : MTSCO

Model Number : MTSCOSSSP22

Certification : ISO 9001 & PED & AD2000

Place of Origin : CHINA

MOQ : negotiable

Price : 2900-10000USD/TON

Payment Terms : T / T ; L / C

Supply Ability : 300 Tons / Month

Delivery Time : 30 Days

Packaging Details : Plywood Case

Material : 300 Series

Delivery Condition : Soft / Hard

NDT : Eddy Current Or Hydraulic Test

End Cut : Plain End ( PE ) / Bevel End ( BE )

Type : Seamless

Inspection : 100%

Contact Now

EN10216-5 TP317 / 347H Stainless Steel Pipe , 14BWG, 18BWG, 20BWG

Chemical Composition

C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 2.00 0.045 0.030 17.0-19.0 9.0-12.0 0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 2.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 2.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 2.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 2.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75

Industry & Advantage

Application

a) For fluid & gas transport

b) Structure & machining etc

Advantages

a) Advanced technology of cold draw machine

b) Advanced annealing machine

c) Better mechanical property

d) More precise dimension

e) Perfect inspection method and inspection equipment etc

Birmingham Wire Gauge BWG
  Wall Thickness   Wall Thickness
BWG IN MM BWG IN MM
- - - 19 0.042 1.07
- - - 20 0.035 0.89
14 0.083 2.11 - - -
15 0.072 1.83 - - -
16 0.065 1.65 - - -
17 0.058 1.47 - - -
18 0.049 1.24 - -  -

Plain End TP317 / 347H Stainless Steel Pipe 300 Series 14BWG , 18BWG , 20BWG

MTSCO has been dedicated to producing seamless stainless steel pipe since 2003 , owning complete producing technology and abundant managing experience . Our raw material such as mother tube , round bar we use is from Chinese biggest and well known steel mill : Walsin , Yongxing etc . And We have advanced NDT equipments for the tests such as Eddy Current test, Ultrasonic test , Hydraulic test and so on . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .


Product Tags:

seamless stainless pipe



seamless stainless tube


Wholesale Plain End TP317 / 347H Stainless Steel Pipe 300 Series 14BWG , 18BWG , 20BWG from china suppliers

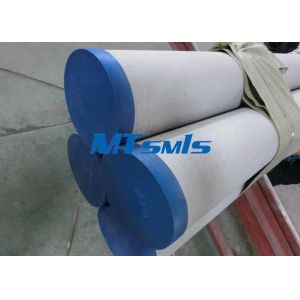

Plain End TP317 / 347H Stainless Steel Pipe 300 Series 14BWG , 18BWG , 20BWG Images
